3W/10W/40W 40MHz Wireless Mesh Network Radio 160km Transmission Test
Test Name: 160km 40MHz Wireless Ad-hoc Network Equipment Distance Test
Test time: March 30, 2025

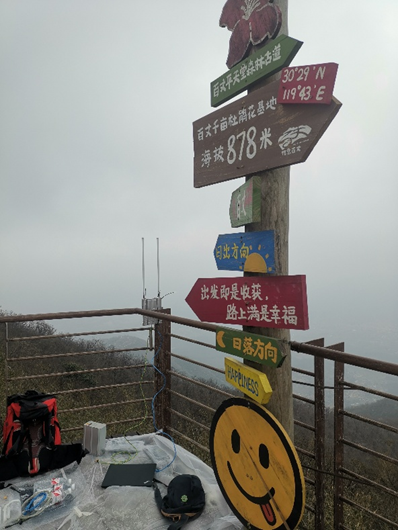

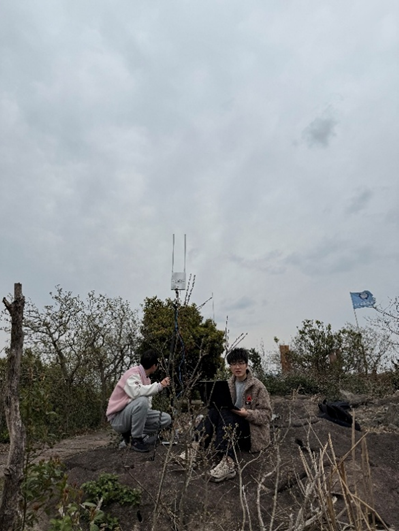

Test Location: Baizhang Qianmu Azalea Base (altitude 878 meters), Tanagang (altitude 446 meters)
Test Product: ***'s high-bandwidth (100Mbps) wireless ad-hoc network product
Testing method
Test Method: Place modules at Baizhang Qianmu Azalea Base and Tanagang, connect via Ethernet cable to computers. After establishing the link, perform mutual packet flooding between modules to test real-time bandwidth.
Introduction to the test module:
1. 2422-35-1400: Dual-transmit dual-receive bidirectional video transmission, transmit power 2*35dBm, center frequency 1400MHz, supports 40MHz bandwidth, unidirectional 94mbps data rate, supports MESH networking, recommended line-of-sight range 50-100KM.
2. 2422-40-1400: Dual-transmit dual-receive bidirectional video transmission, transmit power 2*40dBm, center frequency 1400MHz. Supports 40MHz bandwidth, unidirectional 94mbps data rate, supports MESH networking, recommended line-of-sight range 100-200KM.
3. 2422-46-1400: Dual-transmit dual-receive bidirectional image transmission with a transmit power of 2*46dBm and a center frequency of 1400MHz. Supports 40MHz bandwidth, 94Mbps unidirectional data rate, and MESH networking. Recommended usage range is 200-300KM under line-of-sight conditions.
For detailed parameters, refer to the specification document.
Test Scenario 1: Test frequency 1400MHz, transmit power 2*35dBm, bandwidth 40MHz, connected to 5dBi and 5dBi antennas on both sides respectively. In 200KM distance mode, enable burst aggregation function, test code stream.
Test Scenario 2: Test frequency 1400MHz, transmit power 2*40dBm, bandwidth 40MHz. Connected to 5dBi and 5dBi antennas on both sides respectively. In 200KM distance mode, enable burst aggregation function, test code stream.
Test Scenario 1: Test frequency 1400MHz, transmit power 2*46dBm, bandwidth 40MHz. Connected to 5dBi and 5dBi antennas on both sides respectively. In 200KM distance mode, enable burst aggregation function, test code stream.
