ZumBridge 5019N

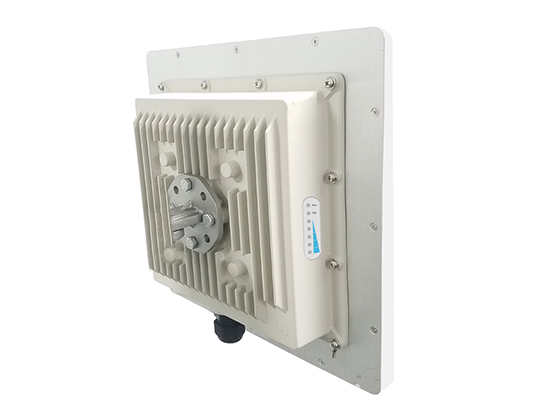

Beijing BitWave Telecommunications Technology Co., Ltd. independently developed this outdoor high-performance wireless bridge device, which adopts the imported Atheros chipset and features a built-in 16kV ESD anti-surge chip. The entire system utilizes advanced anti-interference technology, making it more suitable for complex electromagnetic environments and meeting the rapid development of wireless network applications. With its compact size, lightweight design, and rugged appearance, the product exudes greater appeal. It provides wireless link transmission within a 5-kilometer range, assisting operators, governments, and enterprises in delivering high-quality wireless transmission services across multiple scenarios such as roads, scenic areas, industrial parks, tunnels, and elevators, while effectively reducing network deployment costs and maximizing customer service.

The product supports various operational modes including Bridge mode, WDS relay mode, Station mode, MESH mode, and routing mode, enabling broader applications in existing networks. Additionally, the ZumBridge 5018N supports powerful features such as port speed limiting, flexible adjustment of central station transmission power, frame compression, TDMA time-division multiple access, QoS functionality, and Beamforming. The device can achieve point-to-point and point-to-multipoint wireless transmission and can also function independently as a client. When paired with BitWave Telecommunications' base station-type APs, it offers extended access distances, and when multiple terminals connect with BitWave's intelligent base stations, bandwidth allocation becomes more balanced.

Product Features

  • Equipped with a high-performance 802.11n 2T2R MIMO chip, achieving a transmission range of up to 10 kilometers

  • Supports five working modes: Access Point, Client, Access Point-WDS, Client-WDS, WDS Relay

  • Supports interference immunity and DFS dynamic frequency selection

  • Supports Polling and TDMA time division multiple access

  • Supports DRA Delay Rate Adaptation negotiation algorithm

  • The proprietary FREE-A independent algorithm ensures high stability and reliability of the wireless transmission system.

  • Supports point-to-point or point-to-multipoint transmission modes.

  • Amazing RF performance: Output gain of 500mW, receiving sensitivity of -100dBm

  • Simplified management with GUI interface, Chinese/English WEB management, supports SSH and TELNET simultaneously, flexible and convenient regulatory configuration

  • Intelligent load balancing to maximize wireless network capacity

  • Supports wide-voltage POE Ethernet power supply

  • Built-in 19dBi high-gain dual-polarized directional antenna

Models

ZumBridge 5819N

5.8G 300M Industrial-grade Integrated Wireless Bridge
