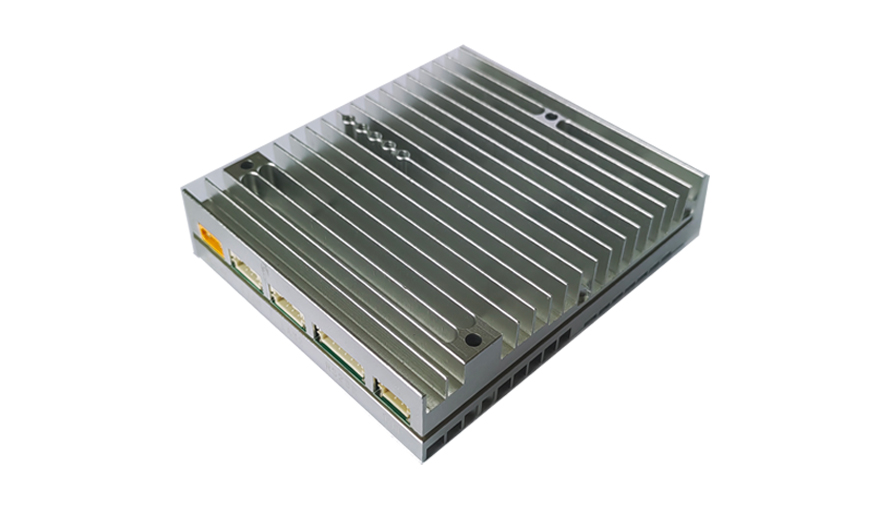

ZumMesh 2322-30

High-bandwidth integrated graph-data self-organizing network data transmission radio

The ZumMesh 2322-30 adopts a Software Defined Radio (SDR) architecture to support proprietary MESH self-organizing network protocols. This product boasts outstanding performance and supports intelligent frequency selection. By dynamically detecting the electronic environment and interference factors of each node across the entire network in real-time, it adjusts its operating frequency within a pre-set list of frequencies to achieve intelligent dynamic transceiver heterodyne networking, effectively avoiding interference automatically. Utilizing the unique STDM spatial channel multiplexing technology, it enhances network efficiency by 50%.

The ZumMesh 2322-30 features dual transceiver RF channels, with each channel capable of reaching up to 30dBm. Equipped with a 5dBi antenna, it delivers unobstructed bandwidths of up to 45Mbps@5KM, 34Mbps@10KM, 29Mbps@20KM, 17Mbps@50KM, and 6Mbps@100KM.

How To Buy

Product Features

Supports STMD MESH smart self-organizing network technology, automatically selecting high-quality paths with roaming handover <10ms
Supports dual 30dBm output power (expandable to 32dBm/1.5W)
Supports bandwidths of 1.25MHz, 2.5MHz, 5MHz, 10MHz, and 20MHz
Supports 1.4G (1350~1450MHz)/655 (635-675)MHz/815 (800-830)MHz
Customizable from 0.7~2.7GHz
Supports up to 264 nodes
Supports intelligent frequency selection and automatic network-wide configuration.
Provides 2 network ports / 2 RS232 / 1 3.3V TTL
Supports radio background scanning
