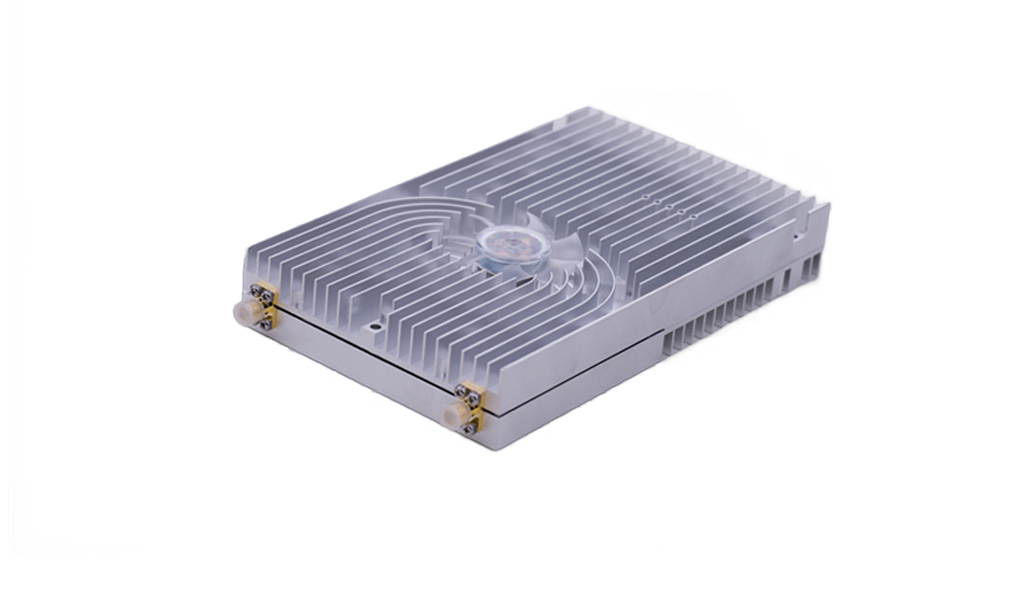

ZumMesh 2322-36

High-bandwidth integrated image and data self-organizing network data transmission radio

The ZumMesh 2322-36 employs a Software-Defined Radio (SDR) architecture to support a proprietary MESH self-organizing network protocol. This product features outstanding performance and supports intelligent frequency selection. By performing dynamic real-time spectrum detection across the entire network to assess the electronic environment and interference factors at each node, it dynamically adjusts its operating frequency within a predefined frequency list. This enables intelligent dynamic transmission and reception on different frequencies, effectively avoiding interference automatically. Utilizing the unique STDM spatial channel multiplexing technology, it enhances network efficiency by 50%.

The ZumMesh 2322-36 is equipped with dual-transceiver RF channels, with each channel capable of reaching 36dBm. When configured with a 5dBi antenna, the unobstructed bandwidth can achieve 45Mbps@10KM, 34Mbps@20KM, 17Mbps@50KM, and 14Mbps@100KM.

How To Buy

Product Features

Supports STMD MESH intelligent self-organizing network technology, automatically selects high-quality paths with roaming handover <10ms
Supports dual 36dBm output power (expandable to 37dBm)
Supports 1.25MHz, 2.5MHz, 5MHz, 10MHz, and 20MHz bandwidths
Supports 1.4G (1350~1450MHz)/655 (635-675)MHz/815 (800-830)MHz
Customizable 0.7~2.7GHz
The number of nodes supports up to 264 nodes
Supports intelligent frequency selection and automatic network-wide configuration.
Provides 2 Ethernet ports / 2 RS232 / 1 3.3V TTL
Supports radio background scanning
