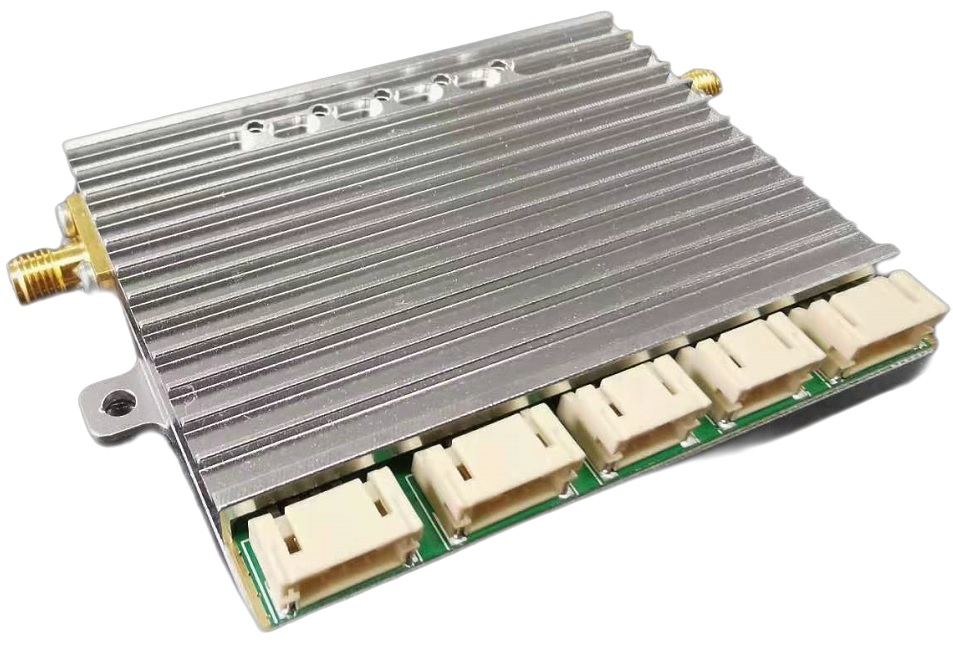

ZumLink LTE2212-25

20km Dual-Network Dual-Channel Integrated Data and Image Transmission Radio

The LTE2212-25 is a point-to-multipoint broadband access and data transmission product. It supports multiple bandwidth allocations and enables one central node to connect up to 16 sub-nodes. Featuring a flat system architecture design, it effectively reduces system latency and enhances transmission capability, with a long transmission range of up to 20km, high data throughput, and strong anti-interference performance.

Supports four frequency bands: 800MHz, 1400MHz, 1500MHz, and 2400MHz, featuring automatic power control and a maximum transmit power of 25dBm. The device provides a PH2.0 user interface.

How To Buy

Product Features

Supports transmission power up to 25dBm
Can provide transmission distances up to 20km
Supports automatic power control; supports automatic frequency point control
Two Ethernet communication ports with PH2.0 interface packaging
PH2.0 interface packaged with 2 RS232 communication ports
Supports bandwidths of 1.4MHz, 3MHz, 5MHz, 10MHz, and 20MHz
Supports four frequency bands: 800MHz, 1.4GHz, 1.5GHz, and 2.4GHz (customizable)
Point-to-multipoint broadband access and data transmission, with one central node connecting up to 16 sub-nodes
