40-watt self-organizing network radio 277-kilometer transmission test
Test Name: 277km Bidirectional Wireless Self-organizing Network Equipment Range Test
Test date: December 14, 2023
Test Location: From Wugujian (altitude 1618 meters) to Jiulingjian in Jiangxi (altitude 1794 meters), with a distance of 277KM as shown in the diagram.
Test Results: Average data rate of 11.8Mbps.

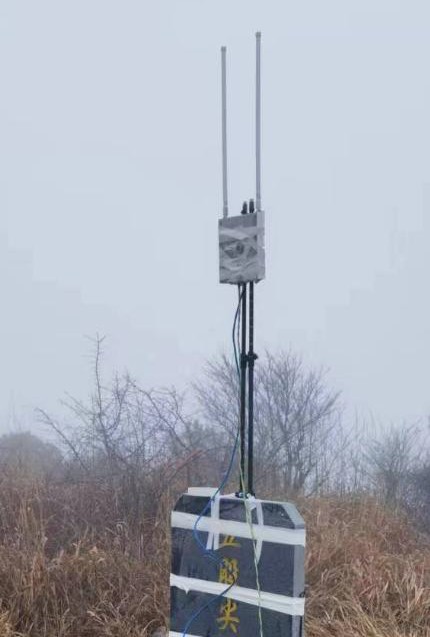

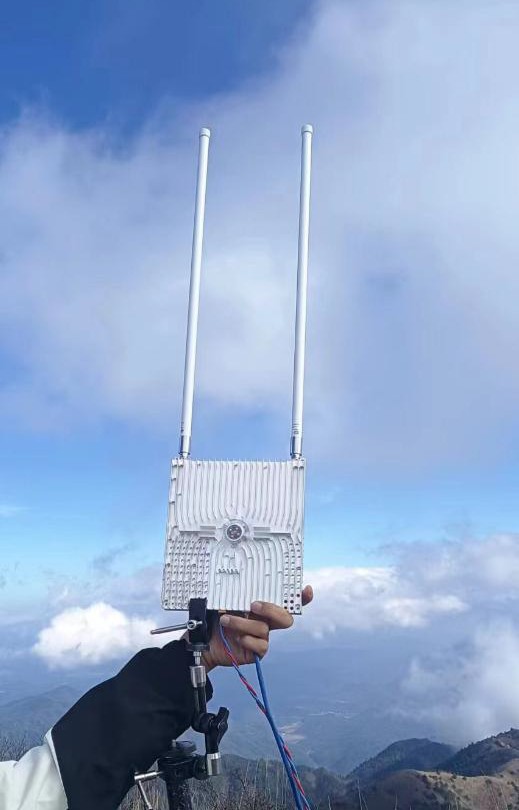

Testing Method: Modules were placed at both Wugujian and Jiulingjian, connected to computers for mutual packet flooding tests to measure real-time bandwidth.
ZumMesh2322-46: Dual-transmit dual-receive bidirectional video transmission, with a transmission power of 40 watts (46dBm, capable of being boosted to 47dBm), center frequency 1400MHz, supports 20MHz bandwidth, unidirectional data rate of 47Mbps, supports MESH networking, and ranges up to 500KM.
277km Wireless Ad Hoc Network Range Test 20231214(46).pdf
