40W 40MHz Wireless Mesh Network Radio 277km Transmission Test
Test Name: 277 km 40Mhz Wireless Ad-hoc Network Equipment Range Test
Test time: April 3, 2025
Test location: Jiulingjian (elevation 1794 meters), Wugujian (elevation 1618 meters)

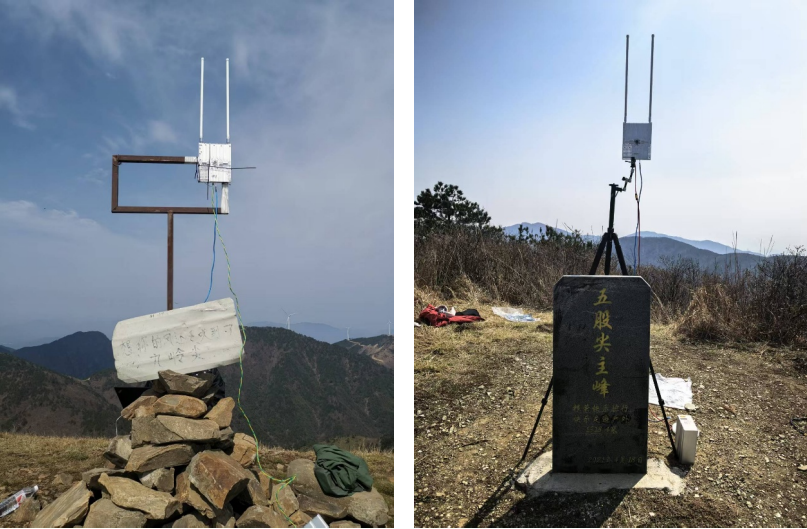

Test method: One module is placed at each of Jiulingjian and Wugujian, connected to a computer via network cable. After establishing a link, data packets are transmitted between the modules to test real-time bandwidth.
Test module description: 1. 2422-46-1400: Dual-transmit dual-receive bidirectional video transmission, ***transmit power 2*46dBm, center frequency 1400MHz.*** Supports 40MHz bandwidth, one-way ***94mbps data rate, supports MESH networking, recommended line-of-sight range 200-300KM.
277km 40MHz Wireless Ad Hoc Network Equipment Range Test 20250403.pdf
