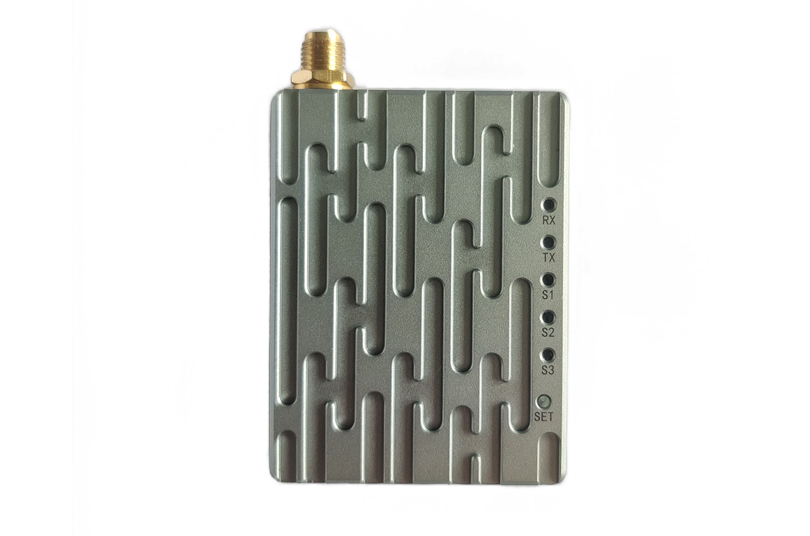

ZumLink FHS 900-30

Miniaturized Frequency Hopping Data Radio

The FHS 900-30 is a miniaturized frequency hopping data radio.

The FHS 900-30 is primarily used in UAVs, robots, unmanned boats, and other applications. It features a compact size, high integration, and high sensitivity, operating in the 902~928MHz frequency band, with a transmission range of up to 60KM under favorable conditions.

Product Features

  •  Frequency range: 902-928MHz

  •  Spread Spectrum Method: FHSS

  • Data Encryption: 256-bit Physical Layer Encryption

  • Communication range: Up to 60km

  • Output power: 1W (30dBm)

  •  Air interface rate: Up to 276.4kbps

  • Operating temperature: -40℃ to 70℃

  • Serial port baud rate: Supports 921.6kbps

Models

ZumLink FHS 900-30

Compact size; High integration; High sensitivity
