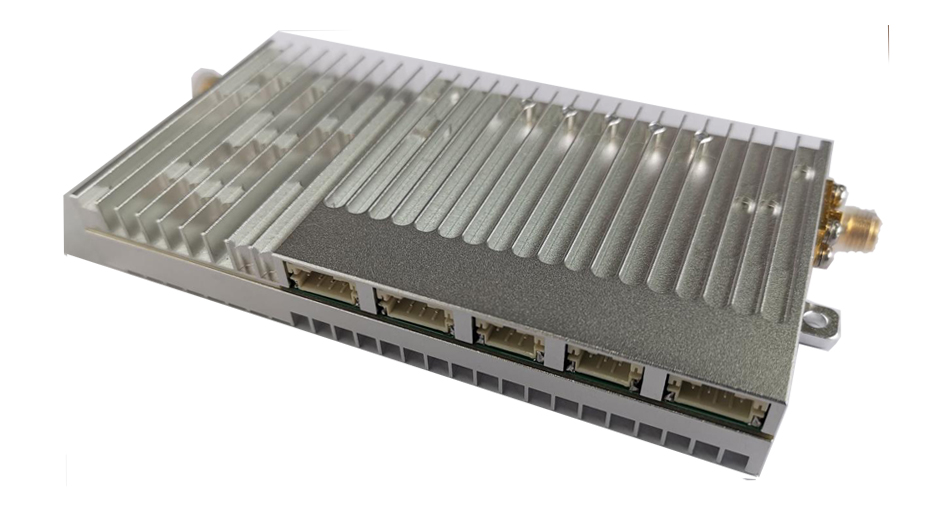

ZumLink LTE2212-33

50km Dual-Network Dual-Serial Integrated Image & Data Transmission Radio

The LTE2212-33 is a point-to-multipoint broadband access and data transmission product. It supports multiple bandwidth allocations and allows one central node to connect to up to 16 sub-nodes. Featuring a flat system architecture design, it effectively reduces system latency and enhances transmission capability, with characteristics such as a long transmission distance of up to 50km, high data throughput, and strong anti-interference performance.

It supports four frequency bands: 800MHz, 1400MHz, 1500MHz, and 2400MHz, along with automatic power control and a maximum transmit power of up to 2W. The device provides a PH2.0 user interface.

How To Buy

Product Features

Supports up to 33dBm transmit power
Can provide long-distance transmission up to 50km
Supports automatic power control; supports automatic frequency control
Two Ethernet communications encapsulated in PH2.0 interface
Two RS232 communications encapsulated in PH2.0 interface
Supports bandwidths of 1.4MHz, 3MHz, 5MHz, 10MHz, and 20MHz
Supports four frequency bands: 800MHz, 1.4GHz, 1.5GHz, and 2.4GHz (customizable)
Point-to-multipoint broadband access and data transmission, with one central node connecting up to 16 child nodes.
