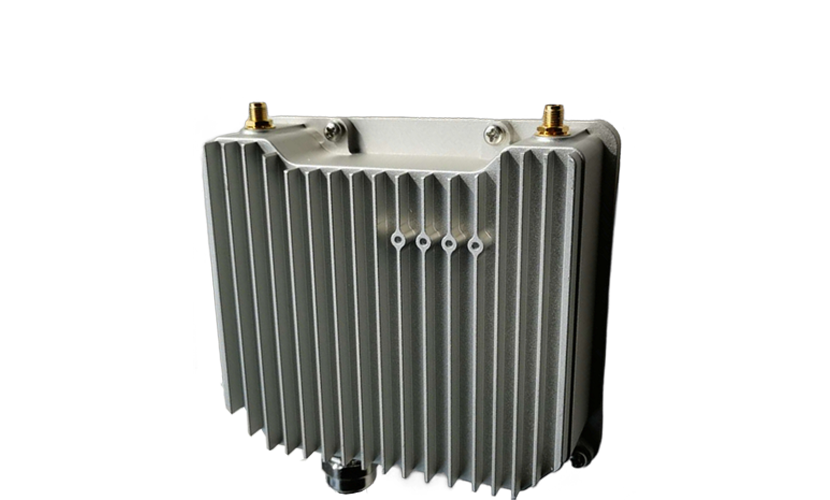

ZumMesh 2322WP-36

High-bandwidth integrated image-data ad hoc network data transmission radio

The ZumMesh 2322WP-36 adopts a Software-Defined Radio (SDR) architecture to support its proprietary MESH ad hoc networking protocol. This product boasts exceptional performance and supports intelligent frequency selection. By dynamically detecting the electronic environment, interference factors, and other conditions at each node across the entire network in real-time, it autonomously adjusts its operating frequency within a pre-set frequency list. This enables intelligent dynamic transmit-receive frequency-division networking, effectively avoiding interference automatically. Utilizing the unique STDM spatial channel multiplexing technology, it enhances network efficiency by 50%.

The ZumMesh 2322WP-36 features dual transceiver RF channels, with a single channel output reaching up to 36dBm. Equipped with a 5dBi antenna, it achieves unobstructed bandwidths of 45Mbps@10KM, 34Mbps@20KM, 17Mbps@50KM, and 14Mbps@100KM.

How To Buy

Product Features

Supports STMD MESH intelligent ad-hoc network technology, automatic path selection, roaming switching <10ms
Supports dual 36dBm output power (expandable to 37dBm)
Supports bandwidths of 1.25MHz, 2.5MHz, 5MHz, 10MHz, and 20MHz
Supports 1.4G (1350~1450MHz)/655 (635-675)MHz/815 (800-830)MHz
Customizable from 0.7~2.7GHz
Supports up to 264 nodes
Supports intelligent frequency selection and automatic network-wide configuration.
Provides 2 Ethernet ports / 2 RS232 / 1 3.3V TTL
Supports radio background scanning
