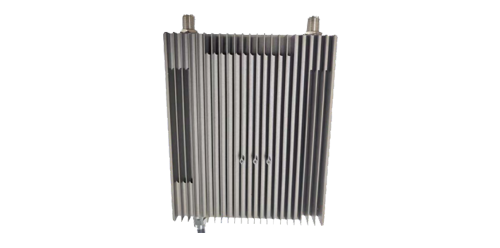

ZumMesh 4322WP-40

High-bandwidth integrated image-data ad hoc network data transmission radio

The ZumMesh 4322WP-40 employs a Software-Defined Radio (SDR) architecture supporting proprietary MESH ad hoc networking protocols. This outdoor waterproof device delivers exceptional performance with intelligent frequency selection, dynamically adjusting its operating frequency within a predefined list through real-time spectrum monitoring across the network to assess electronic environments and interference factors at each node. It enables intelligent dynamic transceiver frequency-division networking, effectively avoiding interference automatically. Utilizing exclusive STDM spatial channel multiplexing technology, it boosts network efficiency by 50%.

The ZumMesh 4322WP-40 features dual-transceiver RF channels, with each channel capable of up to 40dBm output. Equipped with a 5dBi antenna, it achieves unobstructed bandwidths of 42Mbps@20KM, 28Mbps@50KM, and 19Mbps@100KM.

How To Buy

Product Features

Supports STMD MESH intelligent self-organizing network technology, automatic path selection, roaming handover <10ms
Supports dual 40dBm output power (expandable to 41dBm)
Supports 1.25MHz, 2.5MHz, 5MHz, 10MHz, 20MHz bandwidth
Supports 1.4G (1350~1450MHz)/655 (635-675)MHz/815 (800-830)MHz
Customizable 0.7~2.7GHz
Supports up to 264 nodes
Supports intelligent frequency selection and network-wide automatic configuration
Provides 2 network ports/2 RS232/1 3.3V TTL
Supports radio background scanning
