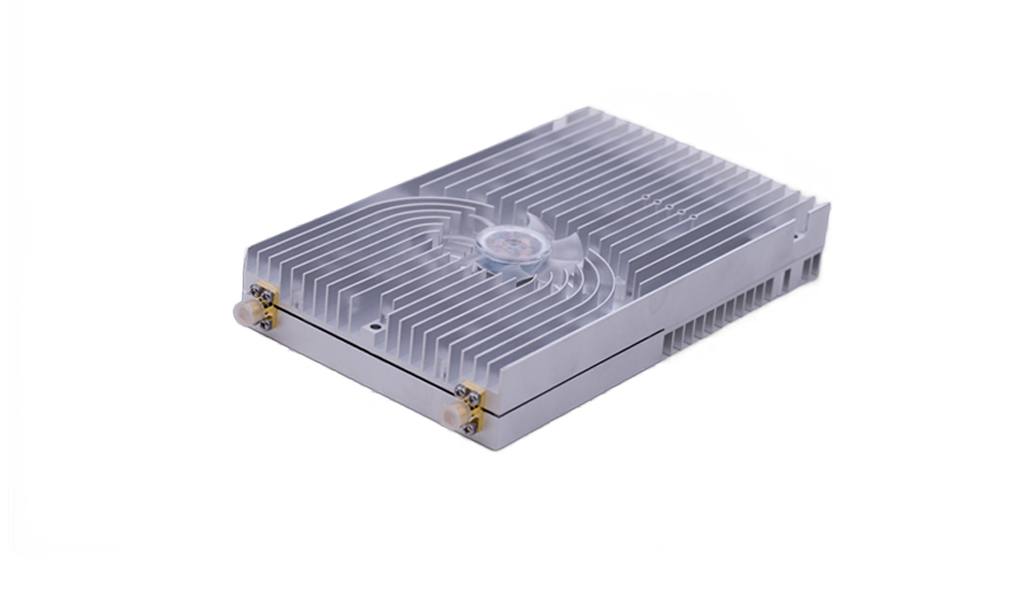

ZumMesh 2322-35

High-Bandwidth Integrated Graph-Data Self-Organizing Network Data Transmission Radio

The ZumMesh 2322-35 adopts a Software-Defined Radio (SDR) architecture to support a proprietary MESH ad-hoc networking protocol. This product boasts exceptional performance and supports intelligent frequency selection. By dynamically detecting the electronic environment and interference factors across the entire network in real-time, it adjusts its operating frequency from a pre-set list, enabling intelligent dynamic transceiver heterodyne networking. It effectively avoids interference automatically and improves network efficiency by 50% using STDM spatial channel multiplexing technology.

The ZumMesh 2322-35 features dual transceiver RF channels, with a single channel capable of reaching 35dBm. Equipped with a 5dBi antenna, it achieves unobstructed bandwidths of 40Mbps@10KM, 30Mbps@20KM, 12Mbps@50KM, and 10Mbps@100KM.

How To Buy

Product Features

Supports STMD MESH intelligent self-organizing network technology, automatic path selection, and roaming handover <10ms
Supports dual 35dBm output power (expandable to 36dBm)
Supports 1.25MHz, 2.5MHz, 5MHz, 10MHz, and 20MHz bandwidths
Supports 1.4G (1350~1450MHz)/655 (635-675)MHz/815 (800-830)MHz
Customizable 0.7~2.7GHz
Supports up to 264 nodes
Supports intelligent frequency selection and automatic network configuration
Provides 2 network ports/2 RS232/1 3.3V TTL
Supports radio background scanning
