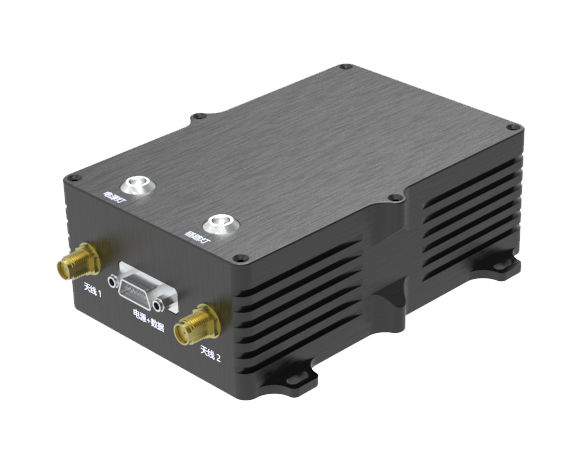

ZumMesh 2322-UAV-36

High-bandwidth integrated image-data ad-hoc network data transmission radio

The ZumMesh 2322-UAV-36 adopts a Software-Defined Radio (SDR) architecture to support proprietary MESH ad-hoc networking protocols. This product features outstanding performance with intelligent frequency selection capability. Through real-time dynamic spectrum sensing across the entire network, it detects the electronic environment, interference factors, and other conditions at each node, then dynamically adjusts its operating frequency within a pre-set frequency list. This enables intelligent dynamic transceiver frequency-division networking, effectively avoiding interference automatically. Utilizing the unique STDM spatial channel multiplexing technology, it increases network efficiency by 50%.

The ZumMesh 2322-UAV-36 is equipped with dual transceiver RF channels, with a single channel reaching 37dBm. When configured with a 5dBi antenna, its unobstructed bandwidth can achieve 45Mbps@10KM, 34Mbps@20KM, 17Mbps@50KM, and 14Mbps@100KM.

How To Buy

Product Features

Supports STMD MESH intelligent ad-hoc networking technology, automatic path selection, with roaming handover <10ms
Supports dual 37dBm output power
Supports bandwidths of 1.25MHz, 2.5MHz, 5MHz, 10MHz, and 20MHz
Supports 1.4G (1350~1450MHz)/655 (635-675)MHz/815 (800-830)MHz
Customizable from 0.7~2.7GHz
Supports up to 264 nodes
Supports intelligent frequency selection and automatic network-wide configuration.
Provide 2 network ports/2 RS232/1 3.3V TTL
Support for radio background scanning
