1.5W/10W Self-Organizing Network Radio 100km Transmission Test
Test Name: 100km Wireless Ad Hoc Network Range Test
Test time: September 27, 2023

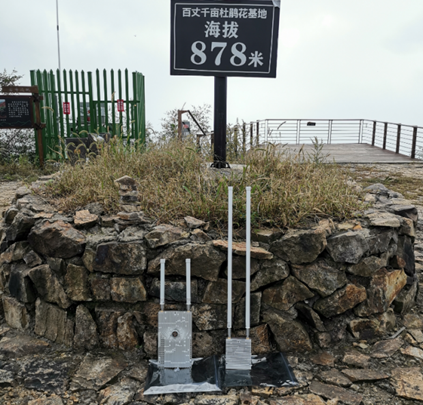

Test location: Baizhang Thousand-Acre Azalea Base, Jianshan Guanyin Temple
Testing Method

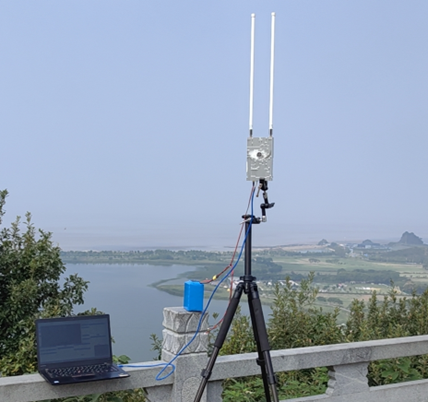

Testing Method: Place modules at the Baizhang Qianmu Azalea Base and Jianshan Guanyin Temple, connect the network cable to the computer; connect the network cable to the computer. After establishing the link, perform packet flooding between modules to test real-time bandwidth.
Testing Module:

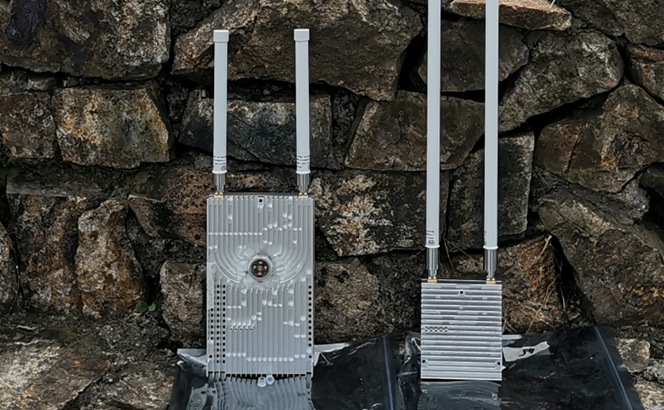

1. ZumMesh2322-30: A 1.5-watt dual-transmit dual-receive self-organizing network device with a transmit power of 2*32dBm, central frequency point of 1400MHz, supporting 20MHz bandwidth, a one-way code rate of 47mbps, and MESH networking with over 64 nodes. Recommended usage range is 20-50KM. The module is shown on the left in the image below.
ZumMesh2322-40: A 10-watt dual-transmit dual-receive self-organizing network device with a transmit power of 2*40dBm, central frequency point of 1400MHz. Supports 20MHz bandwidth, a one-way code rate of 47mbps, and MESH networking with over 64 nodes. Recommended usage range is 50-150KM. The module is shown on the right in the image below.
100km Wireless Ad Hoc Network Range Test 20230927.pdf
