20km Wireless Image and Data Integrated Radio Range Test
Test Name: 20km Wireless Integrated Image and Data Radio Range Test
Test time: September 5, 2025

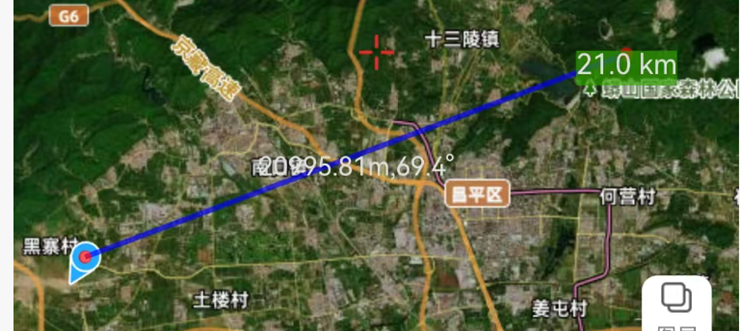

Test Location: Parking Lot of Tianchi (Elevation 878m) at Mangshan Forest Park, Beijing, and Heizhai Village
Test Product: High-bandwidth (28Mbps) Wireless Image and Data Integrated Product

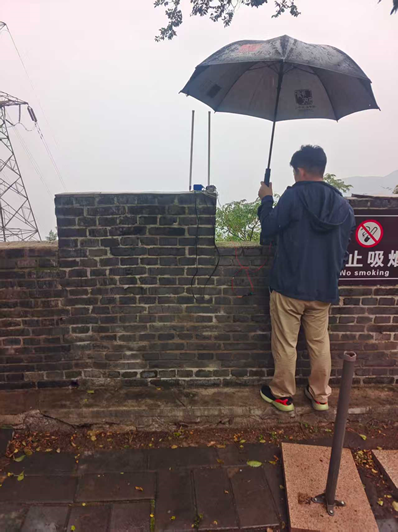

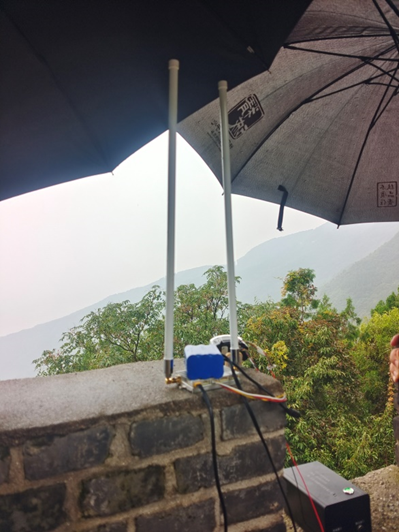

Test Method 1: Place the module at the parking lot of Tianchi in Beijing Mangshan Forest Park and connect it to a network camera; place another module at Heizhai Village and connect it to a computer via an Ethernet cable. After establishing the link, access the camera's IP address through software to view real-time images.
Test Method 2: Place one module at the parking lot of Tianchi in Beijing Mangshan Forest Park and another module at Heizhai Village, connecting both to computers via Ethernet cables. After establishing the link, perform packet flooding between the modules to test real-time bandwidth.
20km Wireless Integrated Image and Data Radio (2412-30) Range Test 20250905.pdf
